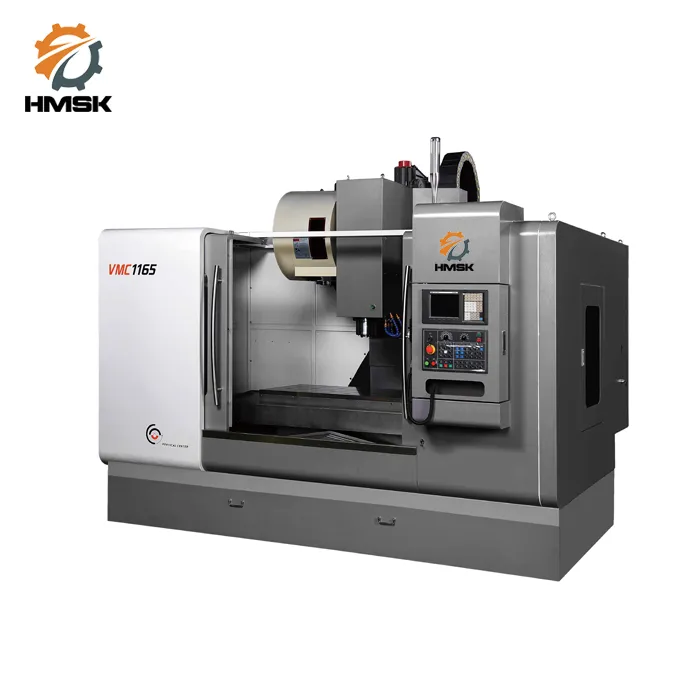

China VMC1165 CNC Milling machine with ATC and 4 axis for metal cutting

Product Description

Feature:

All 3axis use class C3 precision screw,match up the nut preloading and screw prestretched,preeliminate backlash and temperature rise,so that the machine can achieve stability of the positioning and repeatability accuracy.Besides,the X/Y/Z axis use precision linear rails to ensure the control of the positioning accuracy and processing errors,so that the machine can have high accuracy and long working life.

Technology Date

SPECIFICATION		VMC(VC)1000	VMC(VC)1060	VMC(VC)1165
Worktable	worktable size	550x1200mm	600x1300mm	650x1300mm
	Max load of worktable	800kg	1000kg	1000kg
	T~slot size	5x18	5x18	5x18
	T~slot pitch	100mm	120mm	125mm
Travel	X/Y/Z~axis travel	1000/550/650mm	1000/600/620mm	1100/650/665mm
	distance from column to spindle center	610mm	655mm	700mm
	distance from table surdface to spindle nose	100~750mm	130~750mm	150~815mm
Spindle	Spindle hole taper	BT40	BT40	BT40/BT50
	Spindle power	7.5/11KW	7.5/11KW	7.5/11KW
	Max spindle speed	8000rpm	8000rpm	8000rpm
Feed	Max feed speed	6000mm/min	6000mm/min	6000mm/min
Feed	Rapid feed speed(X/Y/Z)	15/15/12m/min	15/15/12m/min	15/15/12m/min
Accuracy	Positioning accuracy(X/Y/Z)	0.012mm	0.012mm	0.012mm
Accuracy	Re~positioning accuracy(X/Y/Z)	0.008mm	0.008mm	0.008mm
Other	Packing size	3000x2510x3000mm	3300x2700x3000mm	3300x2700x3000mm
Other	Net weight	7600kg	8500kg	9000kg

Guarantee Terms:
Complete service by free of charge within 13 months after B/L date Technical service will be given forever at any time. Any questions during operation, can contact us freely by email, or contact on line by Skype, WhatsApp, etc. Also can talk face to face during fairs. You will get response within 20 hours.

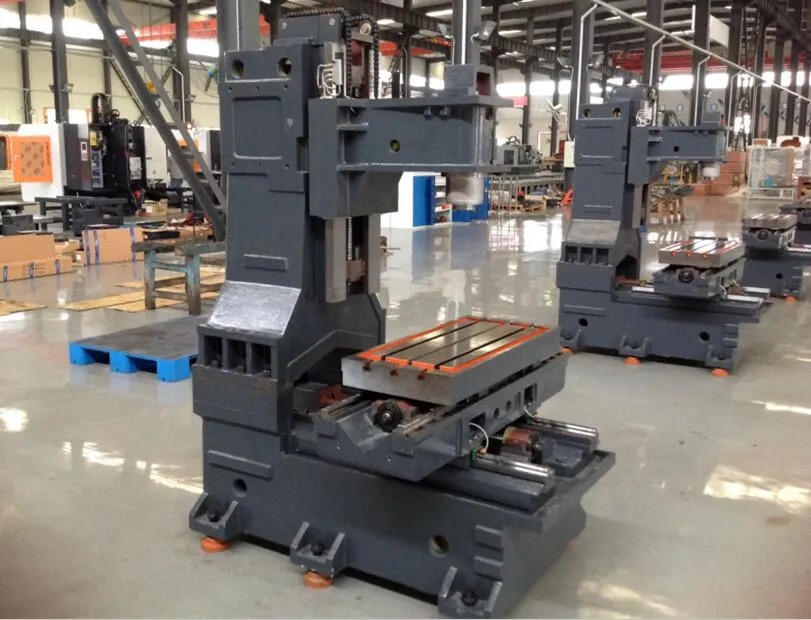

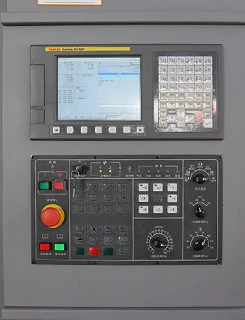

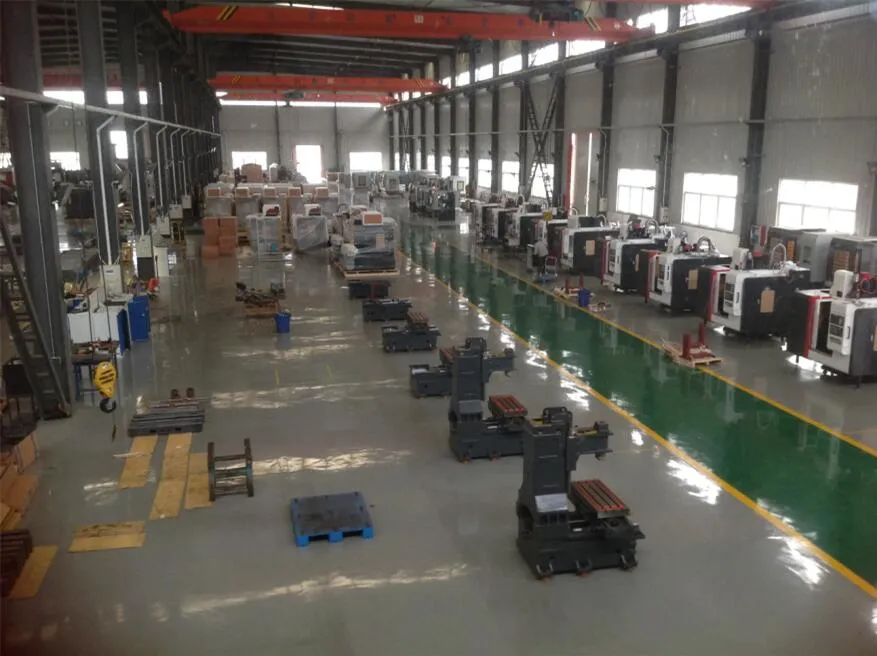

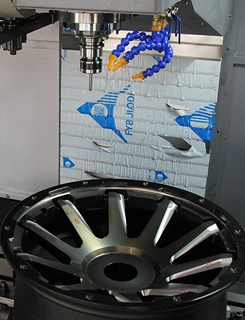

Detailes Pics For Machines

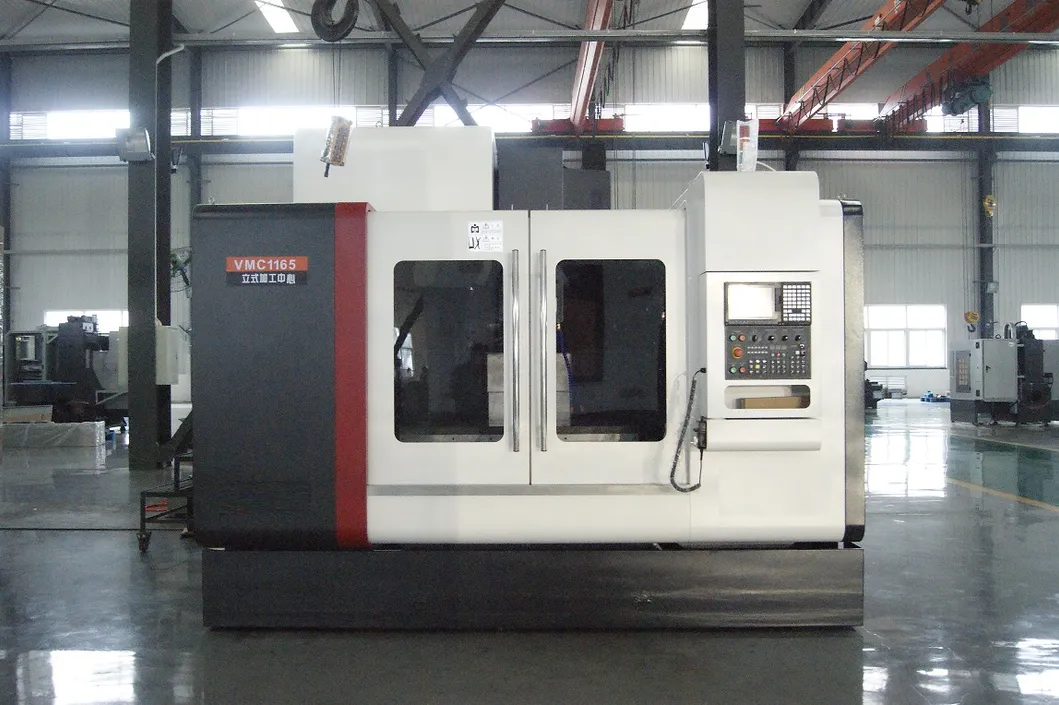

VMC1165 CNC Milling machine with ATC and 4 axis for metal cutting
