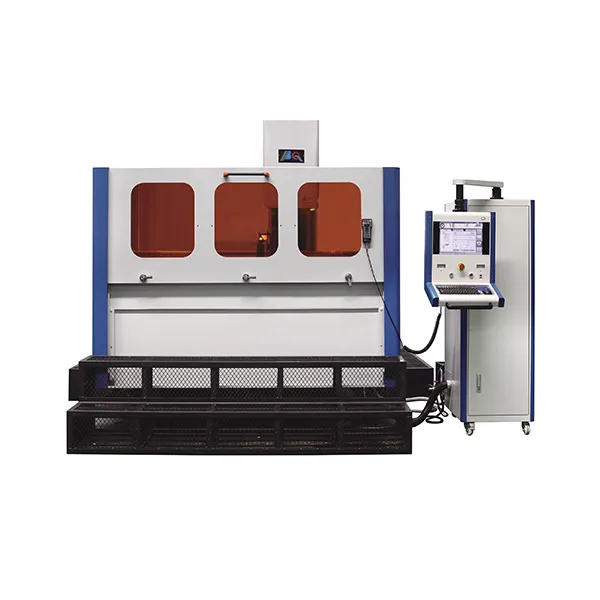

Max Heavy Load 6000 Kgs High Precision CNC Wire Cut EDM
1. The whole system adopts dual CPU design, DSP is responsible for servo control, X86 is responsible for display function and human-computer interaction.2.Display CPU board uses industrial-grade motherboard, embedded Win10 operation system, SSD solid-state electronic disk, which can turn off at any......
Send Inquiry
Product Description
1. The whole system adopts dual CPU design, DSP is responsible for servo control, X86 is responsible for display function and human-computer interaction.
2.Display CPU board uses industrial-grade motherboard, embedded Win10 operation system, SSD solid-state electronic disk, which can turn off at any time, the system never crashes.
3. The system adopts advanced pulse power and anti-electrolysis power technology to improve the dimension accuracy and cutting accuracy of the parts.
4.Users can choose to install grating scale to achieve closed-loop control.
5.The cast of machine body adopt the resin-sand technology with twice high temperature heat treatment, which effectively prevents deformation of the machine.
6. The high precision linear guide, ball screw, are from PMI/HIWIN, and super quality bearings are from Germany, the high configuration makes the mechanical precision maintain for long lifetime.
7.Great move and fast jump features.
8.X,Y, axis are driven by Mitsubishi servo and linear motor, U/V are hybrid motor(servo motor is optional), equipped with 5-axis MPG, which makes the move of the machine fast and smart.
9.The controller adopts X,Y,U,V,Z 5-axis numerical control, with the function of automatic edge finding, automatic center finding, etc.

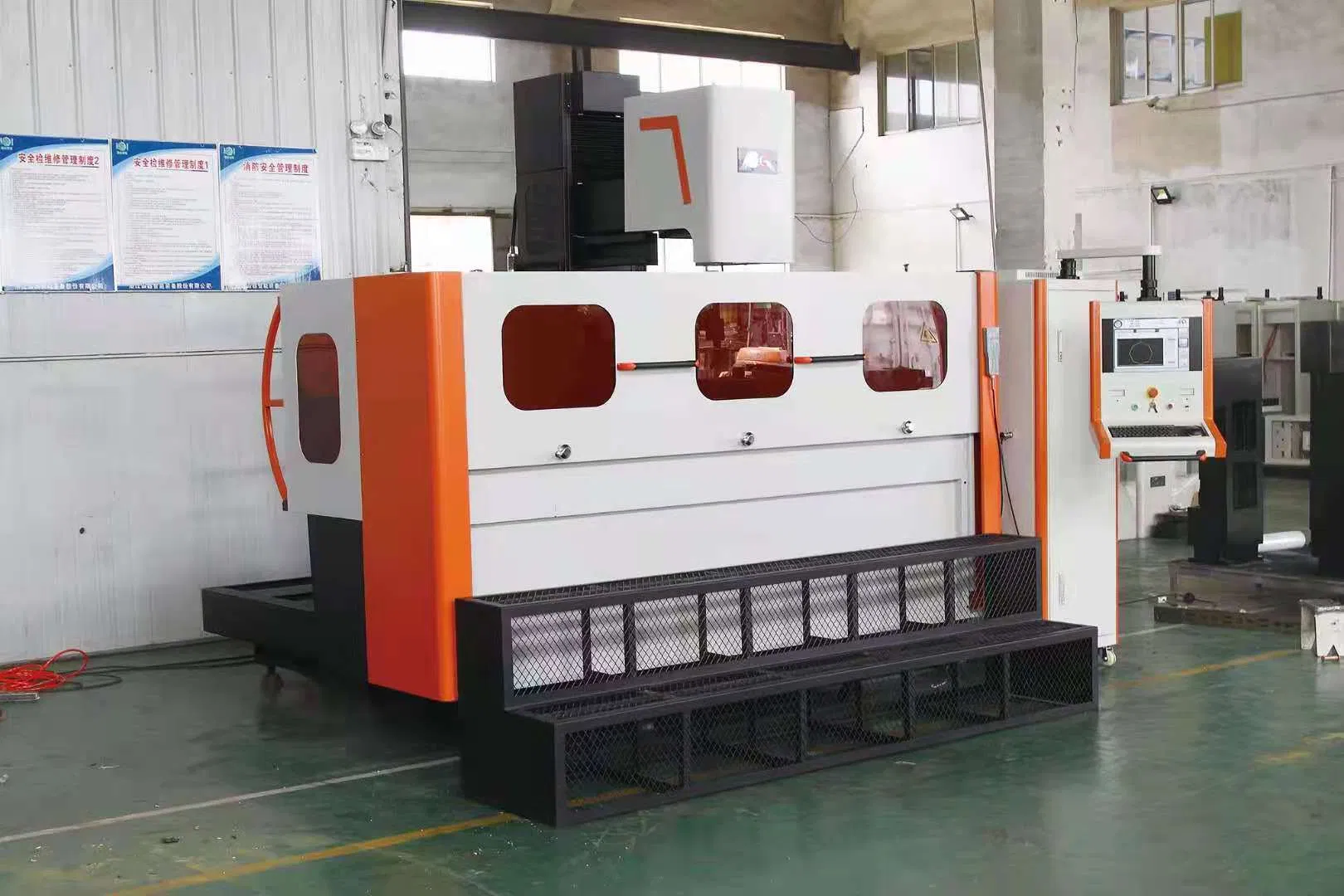

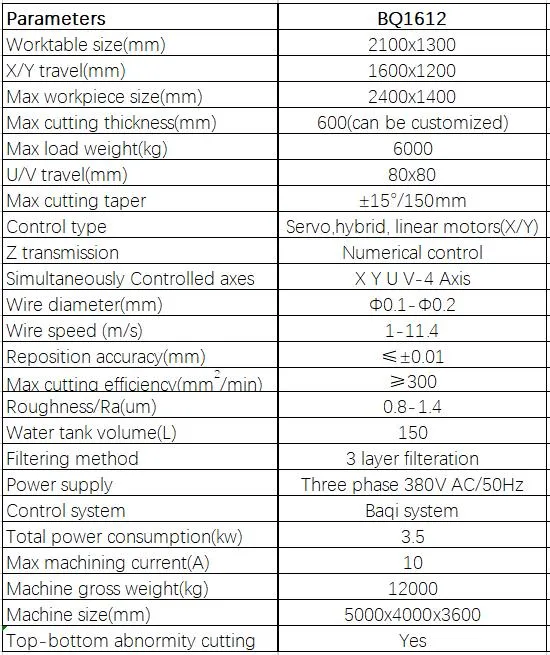

BQ 1612 WIRE EDM machine adopts split structure with fixed worktable design to maintain high accuracy, it can load for MAX 6000KG workpiece.
The cutting thickness can be customized as required, more informatiob, please contact us now.
