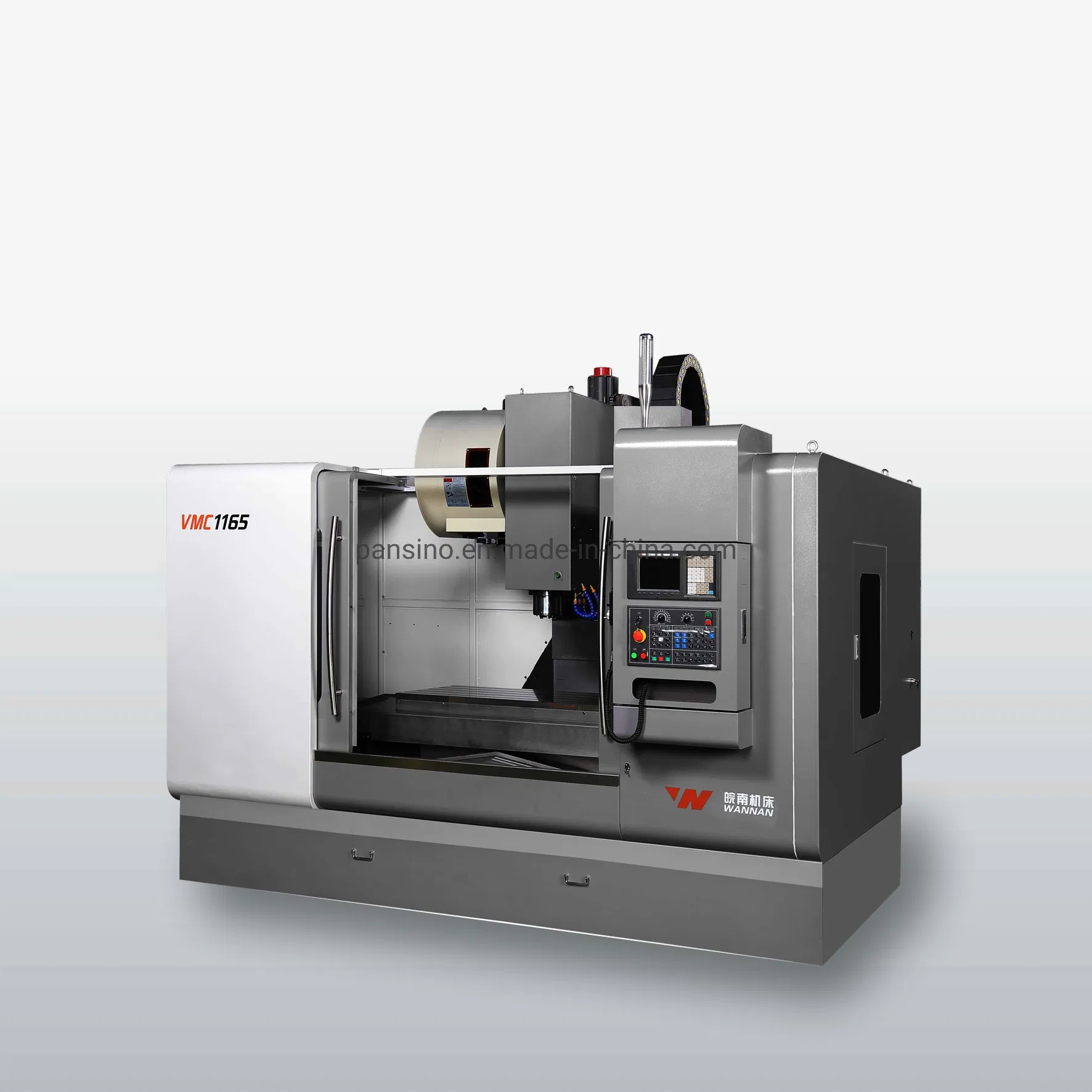

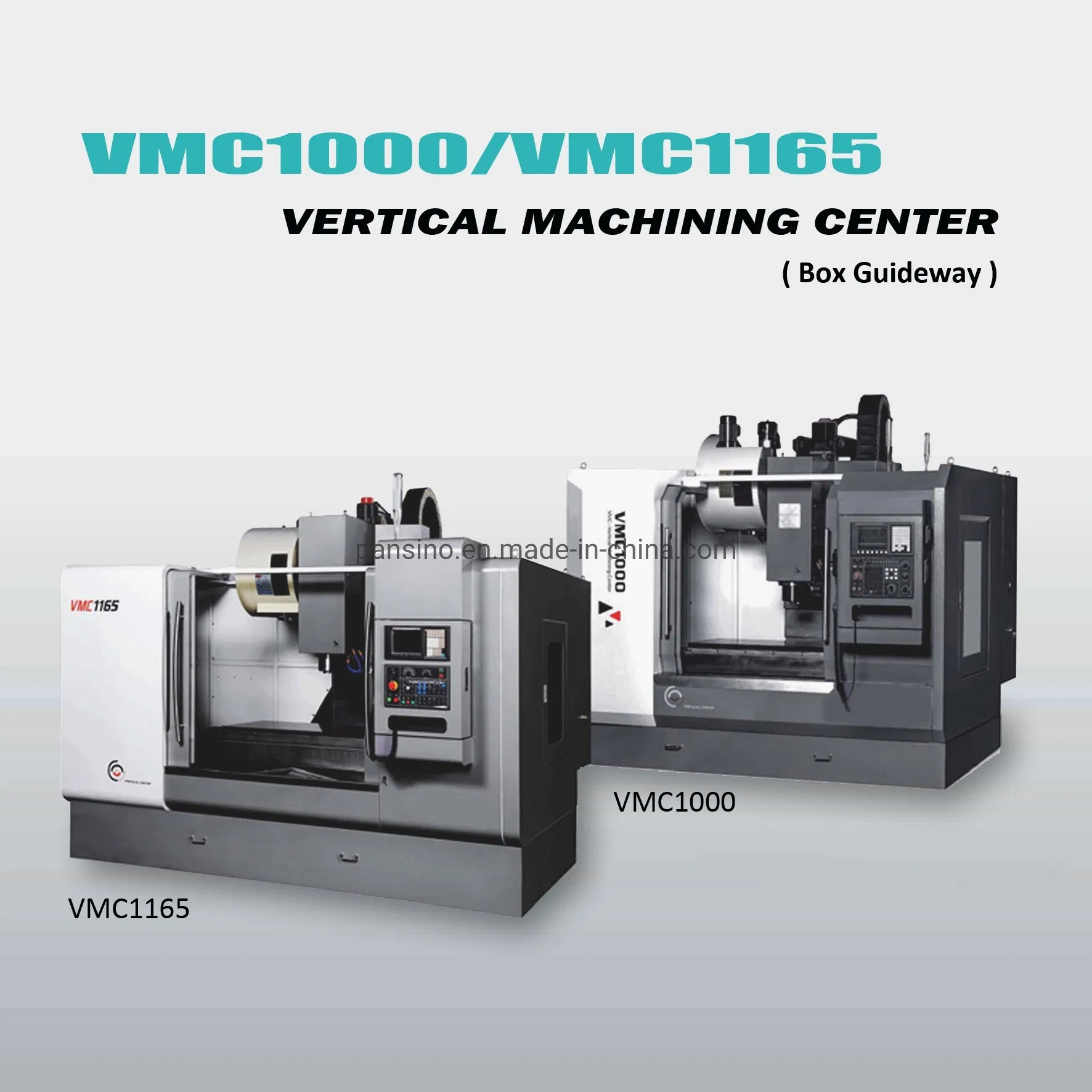

Vertical Machining Center Vmc1165
ModelVMC1165Worktable Size of working table650x1300mmT slots5x18x125Capacity Max. spindle speed8000rpmSpindle taper / Tool holderBT40Power of spindle motor11kw/15kwMax. loading of working table1000kgTravel X axis travel1100mmY axis travel650mmZ axis travel665mmFeed (direct drive) Feeding speed10000m......
Send Inquiry
Product Description
| Model | VMC1165 |
| Worktable | |
| Size of working table | 650x1300mm |
| T slots | 5x18x125 |
| Capacity | |
| Max. spindle speed | 8000rpm |
| Spindle taper / Tool holder | BT40 |
| Power of spindle motor | 11kw/15kw |
| Max. loading of working table | 1000kg |
| Travel | |
| X axis travel | 1100mm |
| Y axis travel | 650mm |
| Z axis travel | 665mm |
| Feed (direct drive) | |
| Feeding speed | 10000mm/min |
| X axis rapid feeding speed | 15m/min. |
| Y axis rapid feeding speed | 15m/min. |
| Z axis rapid feeding speed | 12m/min. |
| Machining range | |
| Distance from spindle nose to table surface | 150-815mm |
| Distance from spindle center to column | 700mm |
| Tool magazine | |
| Tool magazine capacity | 24 |
| Max. length of tool | 300mm |
| Tools change time | 2.5s |
| Accuracy | |
| Positioning accuracy (X/Y/Z) | ±0.010mm |
| Repeatability accuracy (X/Y/Z) | ±0.006mm |
| Other's | |
| Net weight | 8500kg |
| Machine dimension | 4800x2700x3200mm |
Standard Accessories:

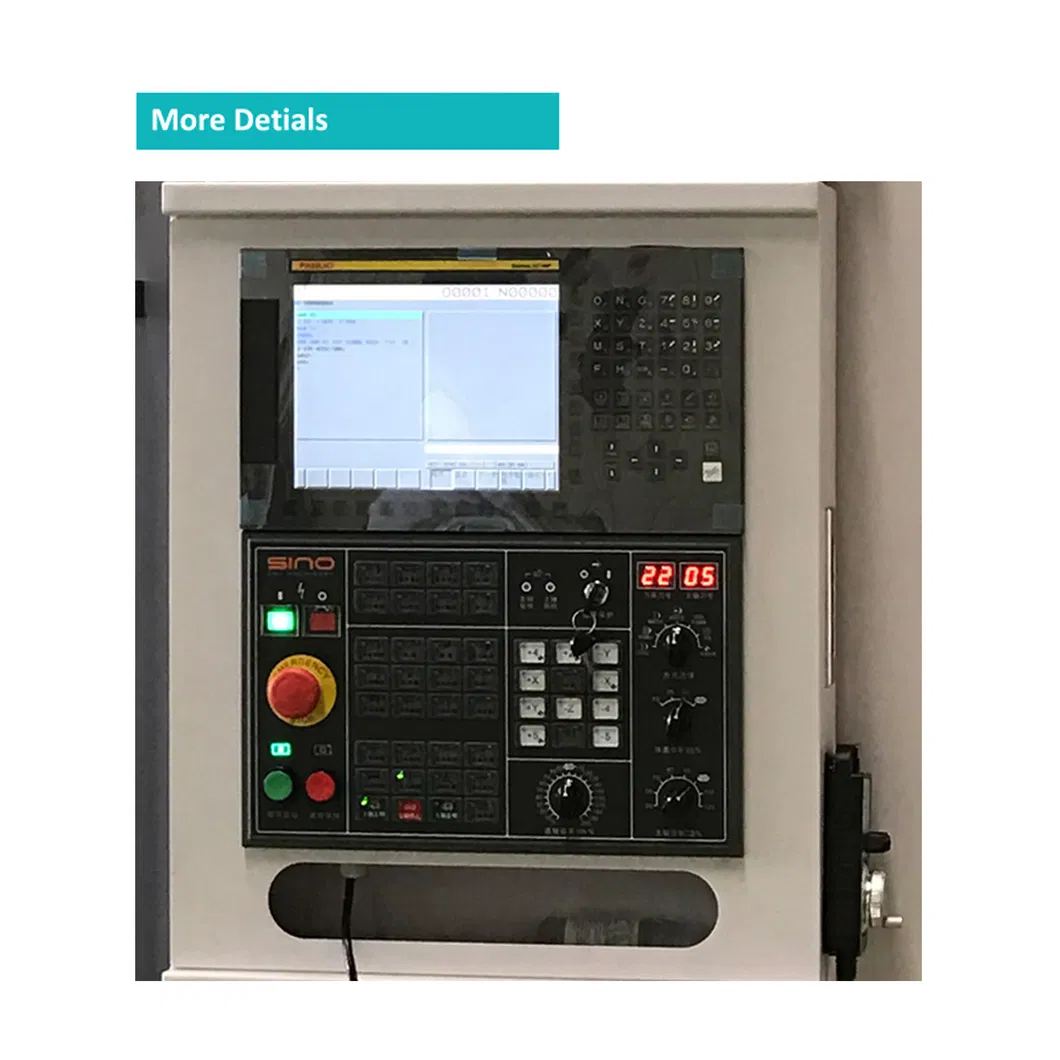

| Controller | 1 set |
| Auto lubrication system | 1 set |
| Coolant system | 1 set |
| Working lamp | 1 sets |
| Closed metal housing | 1 set |
| Necessary tools and tool kit | Numbers |
