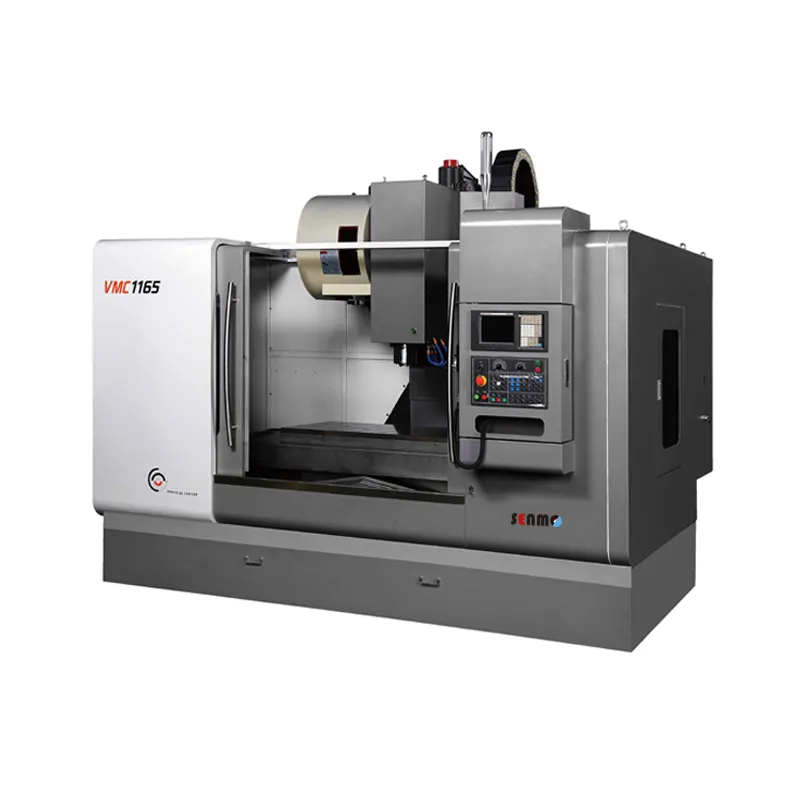

CNC Vertical Machining Center Vmc1165
CNC Vertical Machining Center SpecificationsVMC1165Worktable Worktable size(LxW)1300x650mmT-slot(NxWxD)5x18x25mmTravel X/Y/Z axis travel1100/650/665mmMachine range Distance from spindle center to column700mmDistance from spindle nose to worktable surface150-815mmSpindle Spindle taperBT40Spindle powe......
Send Inquiry
Product Description
| CNC Vertical Machining Center |
| Specifications | VMC1165 |
| Worktable | |
| Worktable size(LxW) | 1300x650mm |
| T-slot(NxWxD) | 5x18x25mm |
| Travel | |
| X/Y/Z axis travel | 1100/650/665mm |
| Machine range | |
| Distance from spindle center to column | 700mm |
| Distance from spindle nose to worktable surface | 150-815mm |
| Spindle | |
| Spindle taper | BT40 |
| Spindle power | 7.5/11kw |
| Max.spindle speed | 8000rpm |
| Feed(direct drive) | |
| Max.feed speed | 10m/min |
| Rapid feed speed(X/Y/Z) | 15/15/12m/min |
| Positioning accuracy(National standard) | |
| Positioning accuracy(X/Y/Z) | ±0.012mm |
| Re-positioning accuracy | ±0.008mm |
| Tool magazine | |
| Tool magazine capacity | 24T |
| Tool change time(T-T) | 2.5s |
| Machine dimension | |
| LxWxH | 3300x2700x3000mm |
| Machine weight | |
| Max.loading of worktable | 1000kg |
| Machine weight | 8500kg |
Our Services
What we can do for you?
1. Experienced staffs answer all your questions in time.
2. Customized design is available, more details to let you know our machines well.
3. Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staff.
