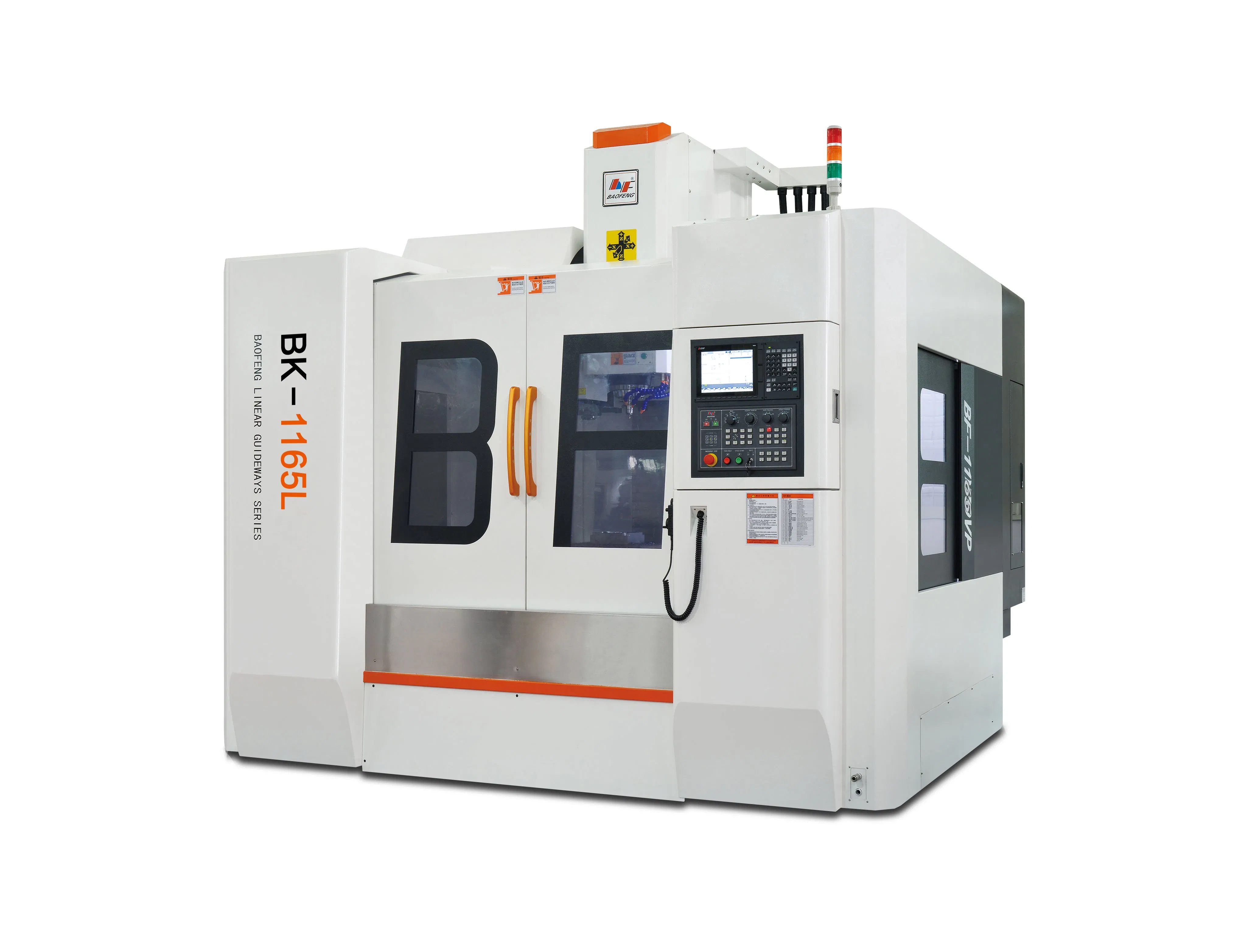

High Precision Linear Way Vmc1165 CNC Mill Metal Processing Machine Center
TRAVELX/Y/Z axis travel1100x650x650mmSpindle nose to table110-810mmSpindle center to column650mmPositioning accuracy±0.005/300mmRepeated positioning±0.003/300mmSpindleSpindle taperBT40Spindle transmissionbelt driveSpindle speed8000 rpm/minControllerCNC controlFanuc 0i-MFSpindle......
Send Inquiry
Product Description
| TRAVEL | |
| X/Y/Z axis travel | 1100x650x650mm |
| Spindle nose to table | 110-810mm |
| Spindle center to column | 650mm |
| Positioning accuracy | ±0.005/300mm |
| Repeated positioning | ±0.003/300mm |
| Spindle | |
| Spindle taper | BT40 |
| Spindle transmission | belt drive |
| Spindle speed | 8000 rpm/min |
| Controller | |
| CNC control | Fanuc 0i-MF |
| Spindle motor | 11/15 kw 10000 rpm/min |
| X/Y/Z motor | 3.0/3.0/3.0kw |
| Table | |
| Table size ( W x L ) | 1300x650mm |
| T slot | 5-18x120mm |
| Table load | 1000kg |
| Feed | |
| X/Y/Z rapid feed rate | 30/30/18m/min |
| X/Y/Z linear guideway | box guideway |
| X/Y/Z ball screw | C3 |
| MACHINE DIMENSION | |
| Dimension | 3560*2760*3300mm |
| Weight | 7000kg |
FAQ:Q1. How can I get a quotation for the CNC machine center?
A. Leave us messages with your purchase requirements and we will reply to you ASAP.
Q2. Can you provide training for the operation of CNC machines?
A. Yes, free training in our factory is available.
