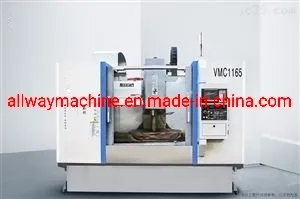

Multi Function Processing Vertical Machining Center
The model VMC1165 vertical machining center adopts a vertical frame layout, the column is fixed on the bed, the headstock moves up and down along the column (Z direction), the slide moves longitudinally along the bed (Y direction), and the worktable moves horizontally along the slide (X direction) )......
Send Inquiry
Product Description
The model VMC1165 vertical machining center adopts a vertical frame layout, the column is fixed on the bed, the headstock moves up and down along the column (Z direction), the slide moves longitudinally along the bed (Y direction), and the worktable moves horizontally along the slide (X direction) )Structure.

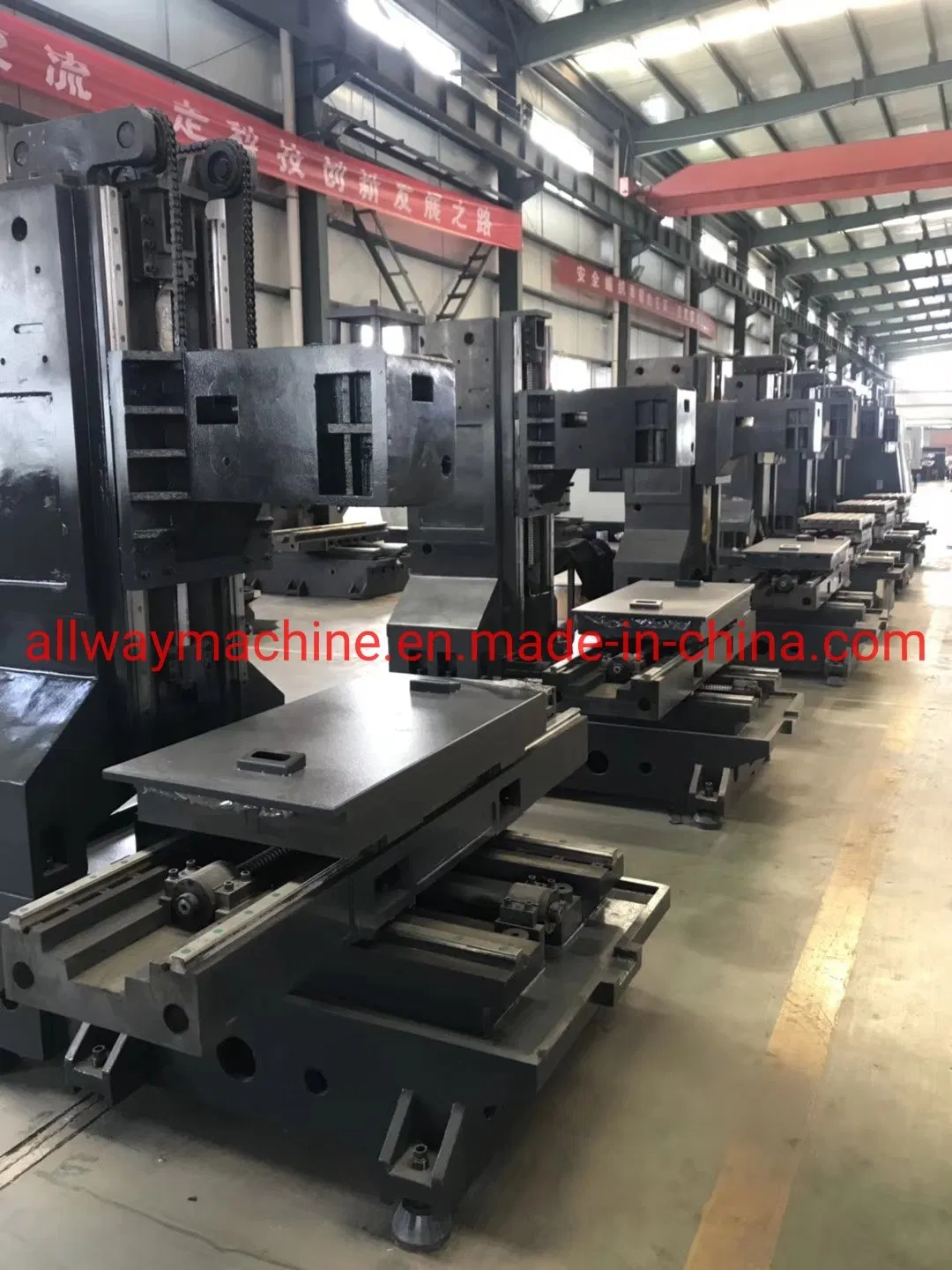

The bed, worktable, sliding seat, column, headstock and other large parts are all made of high-strength cast iron materials. These large parts are optimized and designed with 3D computer software. The ribs are arranged reasonably and have a perfect heat treatment process to eliminate them
VMC 1165 Specifications :
Standard :
Some machining Samples :

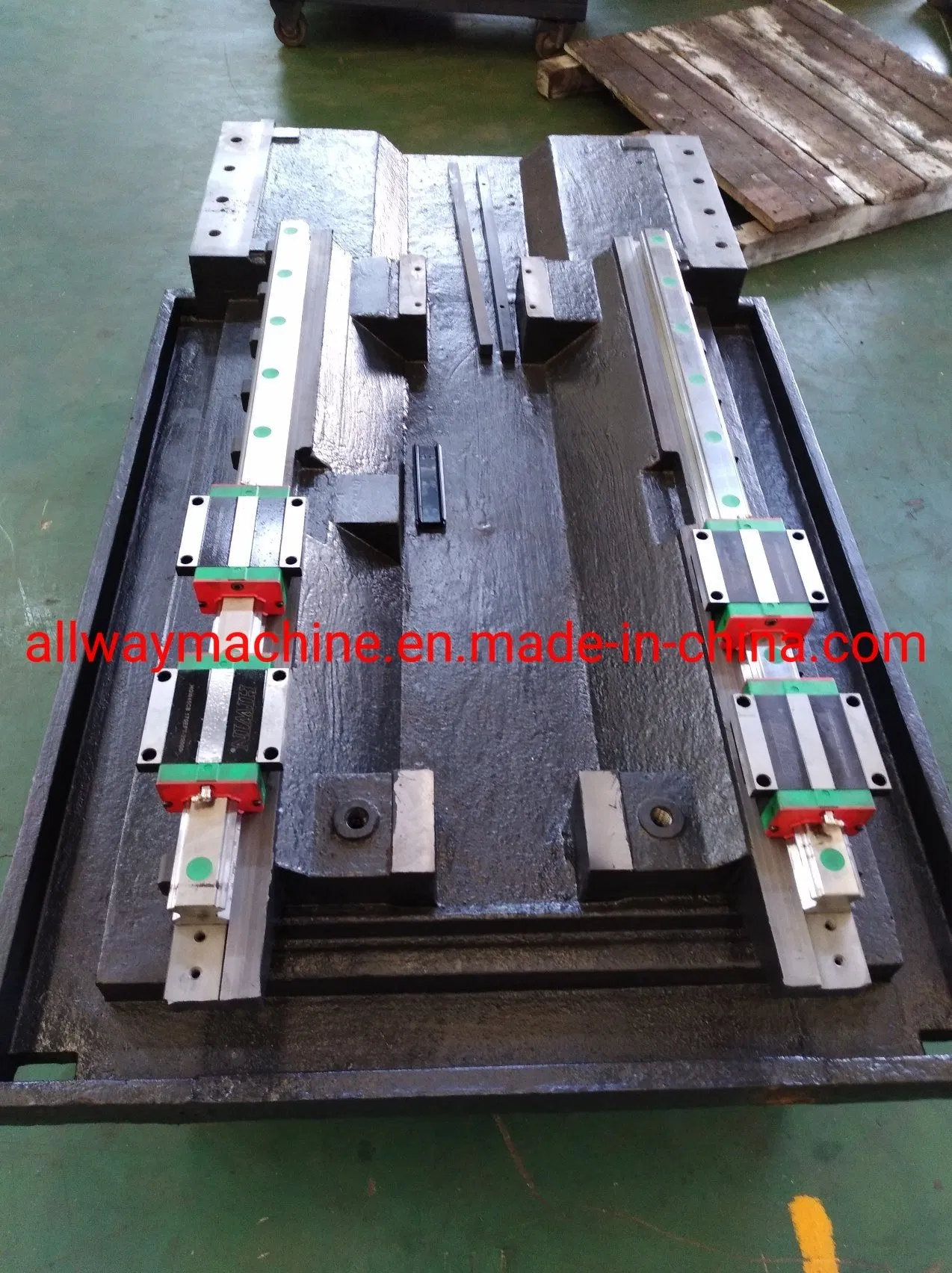

The bed, worktable, sliding seat, column, headstock and other large parts are all made of high-strength cast iron materials. These large parts are optimized and designed with 3D computer software. The ribs are arranged reasonably and have a perfect heat treatment process to eliminate them
VMC 1165 Specifications :
| Item | Specifications | Unit | Value |
| Worktable | Size(L*W) | mm | 1200*600 |
| - | Max. loading capacity | Kg | 1000 |
| Travel | X/ Y / Z | mm | 1100*650*600 |
| - | Distance from Spindle nose to worktable | mm | 160--760 |
| T Slots | No. * width | mm | 5*18 |
| - | Distance | mm | 100 |
| Spindle | Taper | - | BT40 |
| - | Distance from spindle center to column guideway face | mm | 665 |
| - | Spindle speed | rpm | 8000 |
| - | Spindle motor | Kw | 11 |
| - | Driving | - | Belt |
| Accuracy | Positioning | mm | 0.012 |
| - | Re-positioning | mm | 0.008 |
| Axis motor | Power | Nm | 15/15/12 |
| Feeding speed | X/Y/Z axis rapid feed speed | m/min | 20/20/16 |
| - | X/Y/Z axis cutting speed | mm/min | 0-6000 |
| ATC | model | - | Arm type |
| - | Number | Pcs | 24 |
| - | Machine weight | kg | 6800 |
| - | Overall size | mm | 3450*2520*2950 |
| - | Power requirements | KVA | 3PH/380V /15KVA |
Standard :
| No. | Name | Remark | |
| 1 | Controller | FANUC servo control; | |
| 2 | Main motor | FANUC 11KW servo motor; | |
| 3 | Axis motor | FANUC servo motor. | |
| 4 | spindle | Taiwan 8000rpm high speed precision spindle unit | |
| 5 | Ball screw | Taiwan Hiwin | |
| 6 | ATC | Taiwan 24 tools | |
| 7 | Work light | 13 | Spindle taper:BT40 7/24 |
| 8 | Spindle taper clean air | 14 | Warn light |
| 9 | Coolant liquid | 15 | handwheel |
| 10 | Air gun | 16 | Full protection |
| 11 | Foundation pad and adjust bolts | 17 | Electrical cabinet cooling |

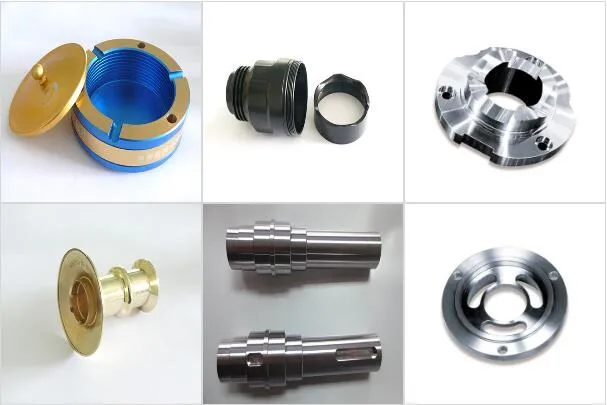

Some machining Samples :
