Product Description

General description:

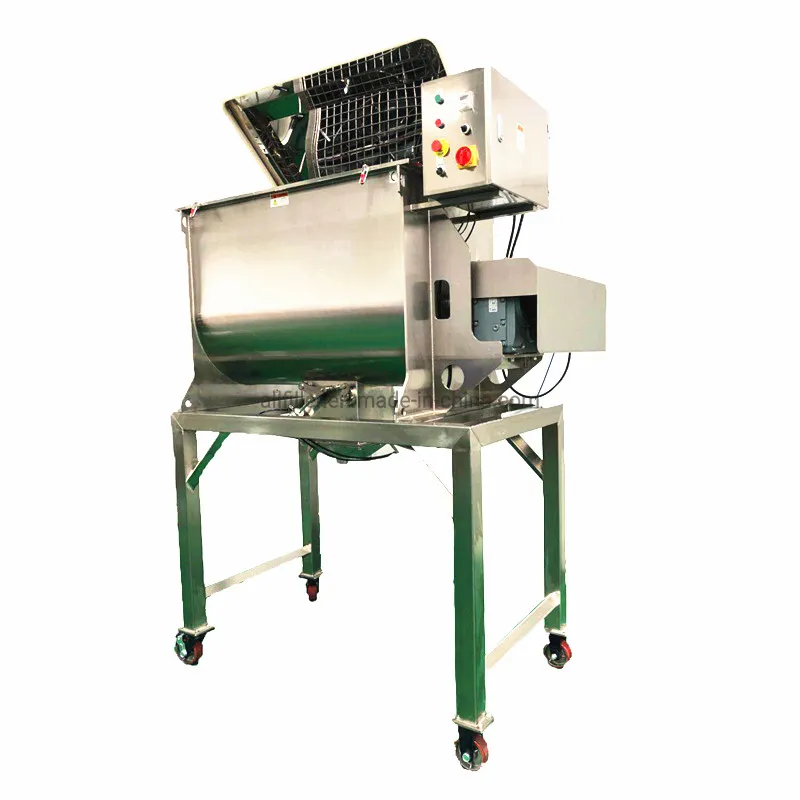

The outer ribbon push the material from the two sides to the center, and the inner ribbon push the material
from the center to both sides to get a high effective mixing, so horizontal double-ribbon mixer is widely used
in powder material manufacturing process in many fields, like chemical, medicine, food and construction
fields. it is suitable for mixing difference kinds of powders ,powder with small quantity of liquid, and powder
with granule.

CE Auto Protein Milk Soap Salt Coffee Powder Packing Capping Labeling Screw Powder Filling Ribbon Mixing Machine

Specification:

Model	TDPM 100	TDPM 200	TDPM 300	TDPM 500	TDPM 1000	TDPM 1500	TDPM 2000	TDPM 3000	TDPM 5000	TDPM 10000
Capacity(L)	100	200	300	500	1000	1500	2000	3000	5000	10000
Volume(L)	140	280	420	710	1420	1800	2600	3800	7100	14000
Loading rate	40%-70%
Length(mm)	1050	1370	1550	1773	2394	2715	3080	3744	4000	5515
Width(mm)	700	834	970	1100	1320	1397	1625	1330	1500	1768
Height(mm)	1440	1647	1655	1855	2187	2313	2453	2718	1750	2400
Weight(kg)	180	250	350	500	700	1000	1300	1600	2100	2700
Total Power (KW)	3	4	5.5	7.5	11	15	18.5	22	45	75

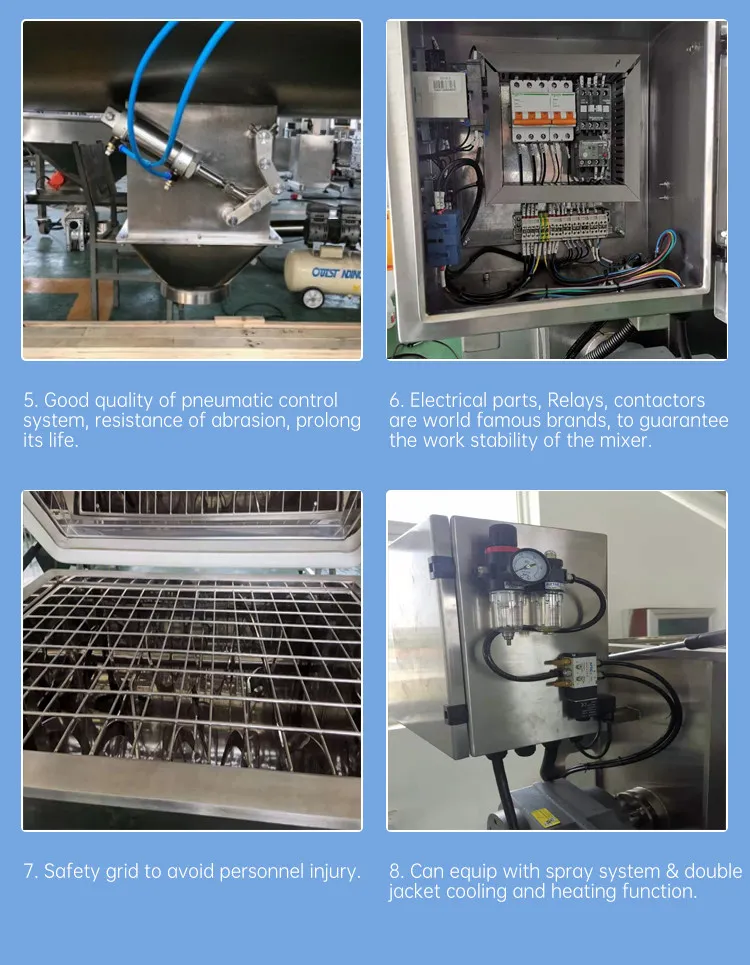

Configurations list:

No.	Name	Brand
1	Stainless steel	China
2	Circuit breaker	Schneider
3	Emergency switch	Schneider
4	Switch	Schneider
5	Contactor	Schneider
6	Assist contactor	Schneider
7	Heat relay	Omron
8	Relay	Omron
9	Timer relay	Omron
