New Cheap Pilot Control Mini Excavator
New Cheap Pilot Control Mini ExcavatorTE 20S zero tail mini excavator multi-functional hydraulic excavator.TE20S model, our new 2 ton Zero tai Mini Excavator designed in 2021, Not only improve work efficiency, but also improve appearance, tailless design, flexible and convenient operation. Have diff......
Send Inquiry
Product Description

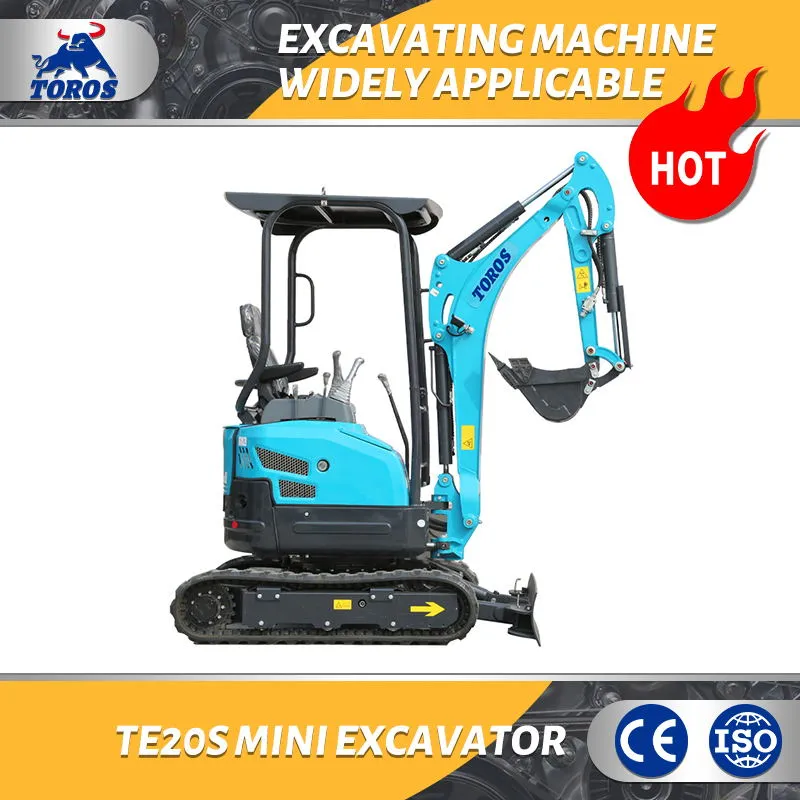

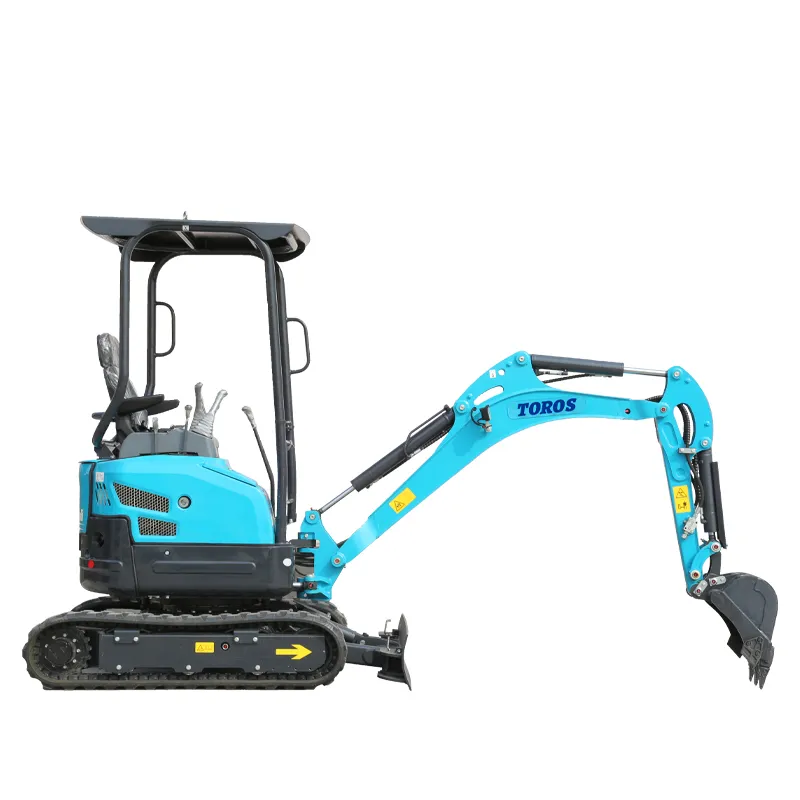

New Cheap Pilot Control Mini Excavator
TE 20S zero tail mini excavator multi-functional hydraulic excavator.TE20S model, our new 2 ton Zero tai Mini Excavator designed in 2021, Not only improve work efficiency, but also improve appearance, tailless design, flexible and convenient operation. Have different colors for choose and the color can also be customized according to customer requirements. Three-sided spray paint, anti-oxidation and anti-exposure, better appearance.
| TE20S Mini crawler excavator | |||
| METRIC | IMPERIAL | ||
| Bucket Capacity | 0.04m³ | Bucket Capacity | 1.41ft³ |
| Excavator Width | 990/1240 mm | Excavator Width | 38.98/48.82in |
| Track Length | 1585mm | Track Length | 62.40in |
| Chassis Ground Clearance | 145mm | Chassis Ground Clearance | 5.71in |
| Crawler Material | Rubber/steel tracks | Crawler Material | Rubber/steel tracks |
| Track Width | 230mm | Track Width | 9.06in |
| MAX.digging Force | 14.8 KN | MAX.digging Force | 14.8 KN |
| Gradeability | 30° | Gradeability | 86ºF |
| Excavator Height | 2250mm | Excavator Height | 88.58in |
| Overall Dimension( LxWxH) | 3570*990*2250mm | Overall Dimension( LxWxH) | 140.55*38.98*88.58in |
| TAIFENG Multi-way Valve | Traveling Motor | TAIFENG Multi-way Valve | Traveling Motor |
| Engine | YANMAR 370/ Kubota D902 | Engine | YANMAR 370/ Kubota D902 |
| Engine Power | 10.3 KW/2200rpm 11.8 KW/2200rpm | Engine Power | 13.81hp/2200rpm 15.82hp/2200rpm |
| Turning Radius | 1430mm | Turning Radius | 56.30in |
| Max.Digging Height | 3540mm | Max.Digging Height | 139.37in |
| Max.Dumping Height | 2440mm | Max.Dumping Height | 96.06in |
| Max.Digging Depth | 2310mm | Max.Digging Depth | 90.94in |
| Max.Digging Radius | 3840mm | Max.Digging Radius | 151.18in |
| Max.Vertical Digging Depth | 1910mm | Max.Vertical Digging Depth | 75.20in |
| Fuel Tank Capacity | 18 L | Fuel Tank Capacity | 3.96UK gal |
| Weight | 1760 kg;1920 kg | Weight | 3880lb 2.18oz;4232lb 14.0oz |
| EATON Swing Motor | Taifeng Plunger Hydraulic Pump | EATON Swing Motor | Taifeng Plunger Hydraulic Pump |
