Ce EPA Approved Earthmoving Machinery Hydraulic Mini Excavator 1 Ton Crawler Excavator for Sale

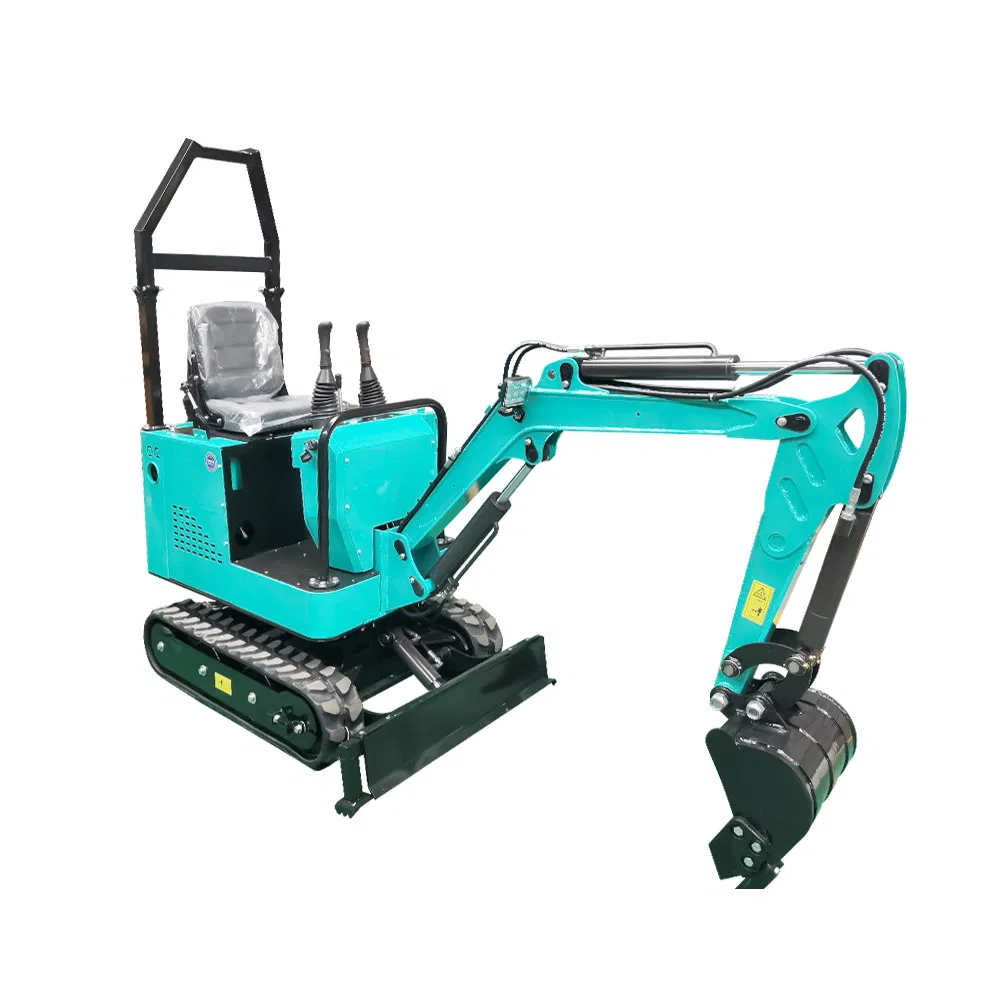

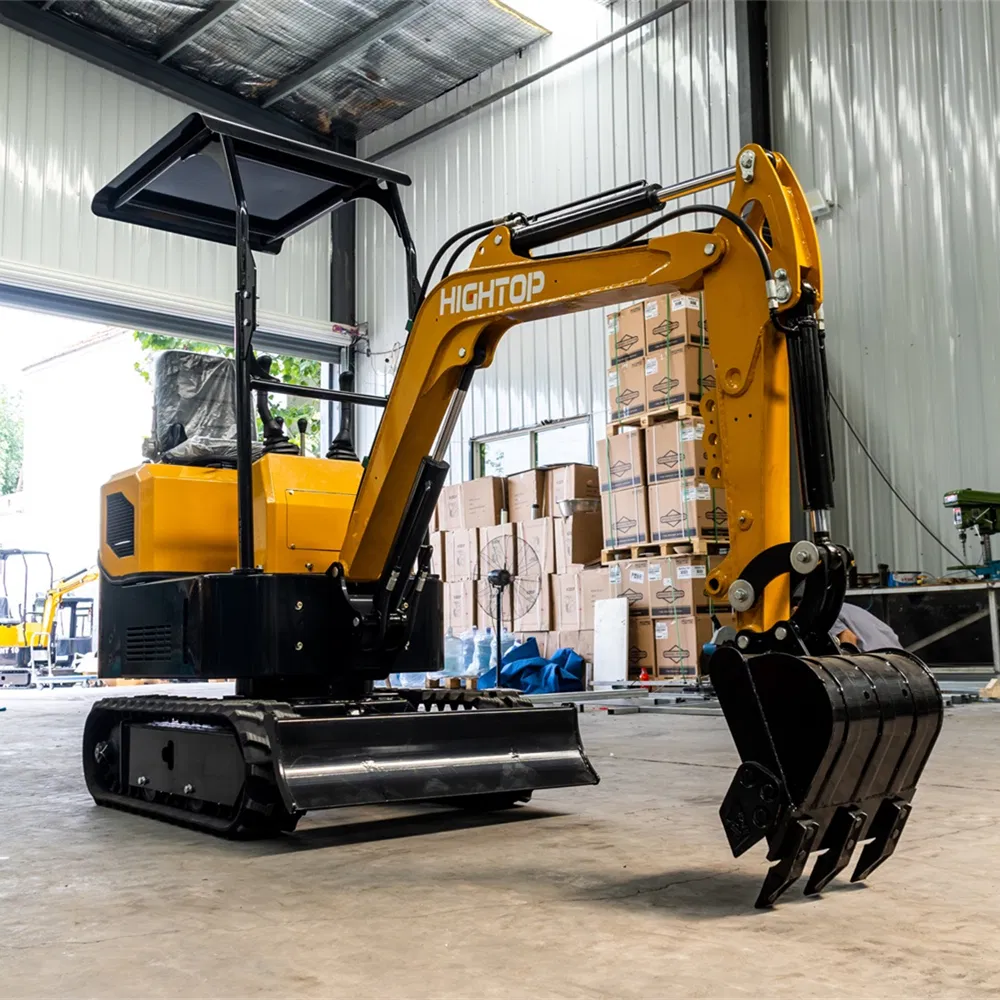

Hydraulic mini excavator 1 ton crawler excavator

• High fuel efficiency
• Super power
• A tractor serves several purposes

  Model	HT10
  Weight	1000 kg
  Digging bucket capacity	0.025CBM/120 KG
  Bucket width	380 mm
  Engine	CHANGCHAI(KD192)
  Bore stroke	Single cylinder,fan cool
  Rated power	8.6 kw/3600 rpm
  Displacement	6.8ml/r
  Main pump	CBK-F6.8
  Swing motor	SJ-TECH(MP-1-160)
  Traveling motor	KERSEN(OMS-2450)
  Travel speed	1.5 km/h
  Main Dimensions
  Overall dimensions(L*W*H)	2770*896*1490 mm
  Wheelbase	910 mm
  Total length of track	1230 mm
  Platform ground clearance	380 mm
  Platform back turning radius	784 mm

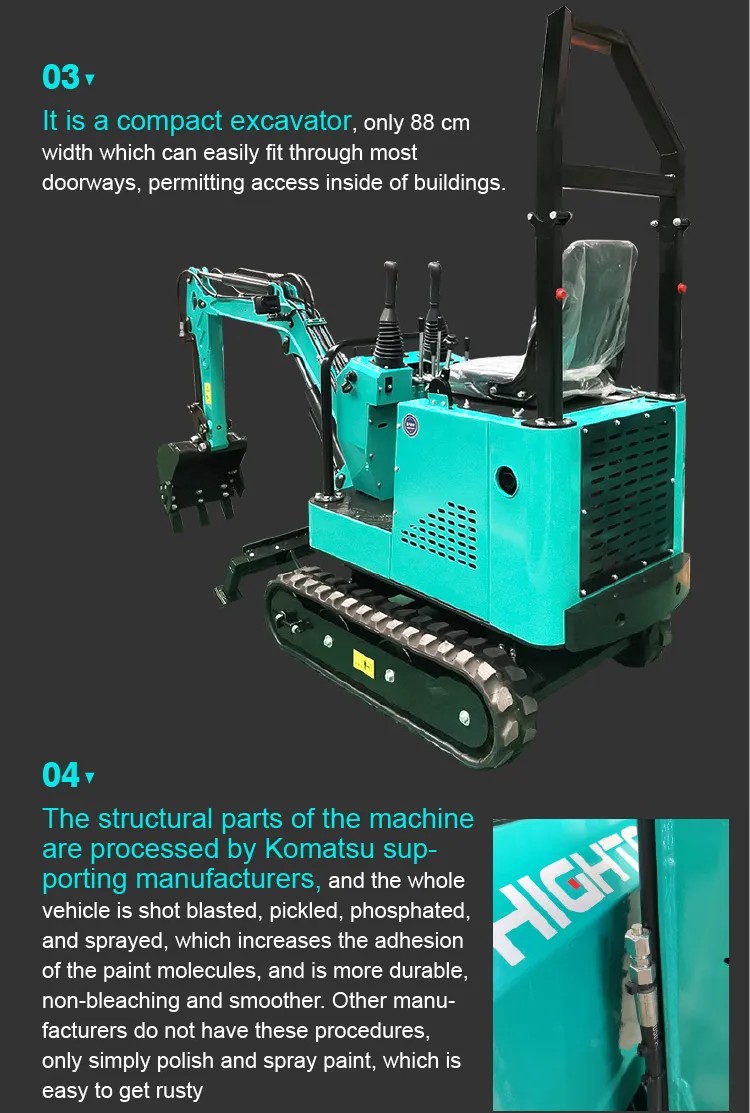

  Chassis width	880 mm
  Track width	180 mm
  Chassis ground clearance	132 mm
  Track height	320 mm
  Operating Range
  Max. Digging depth	1650 mm
  Max. Vertical Digging Depth	1375 mm
  Max. Digging height	1375 mm
  Max.Dumping height	2610 mm
  Max. Digging radius on ground	2850 mm
  Min.Rotation radius	1330 mm
  Max.Upgrade height of bulldozer blade	345 mm
  Max. Digging depth of bulldozer blade	255 mm
  Max.Dumping height	1850 mm

•
•
