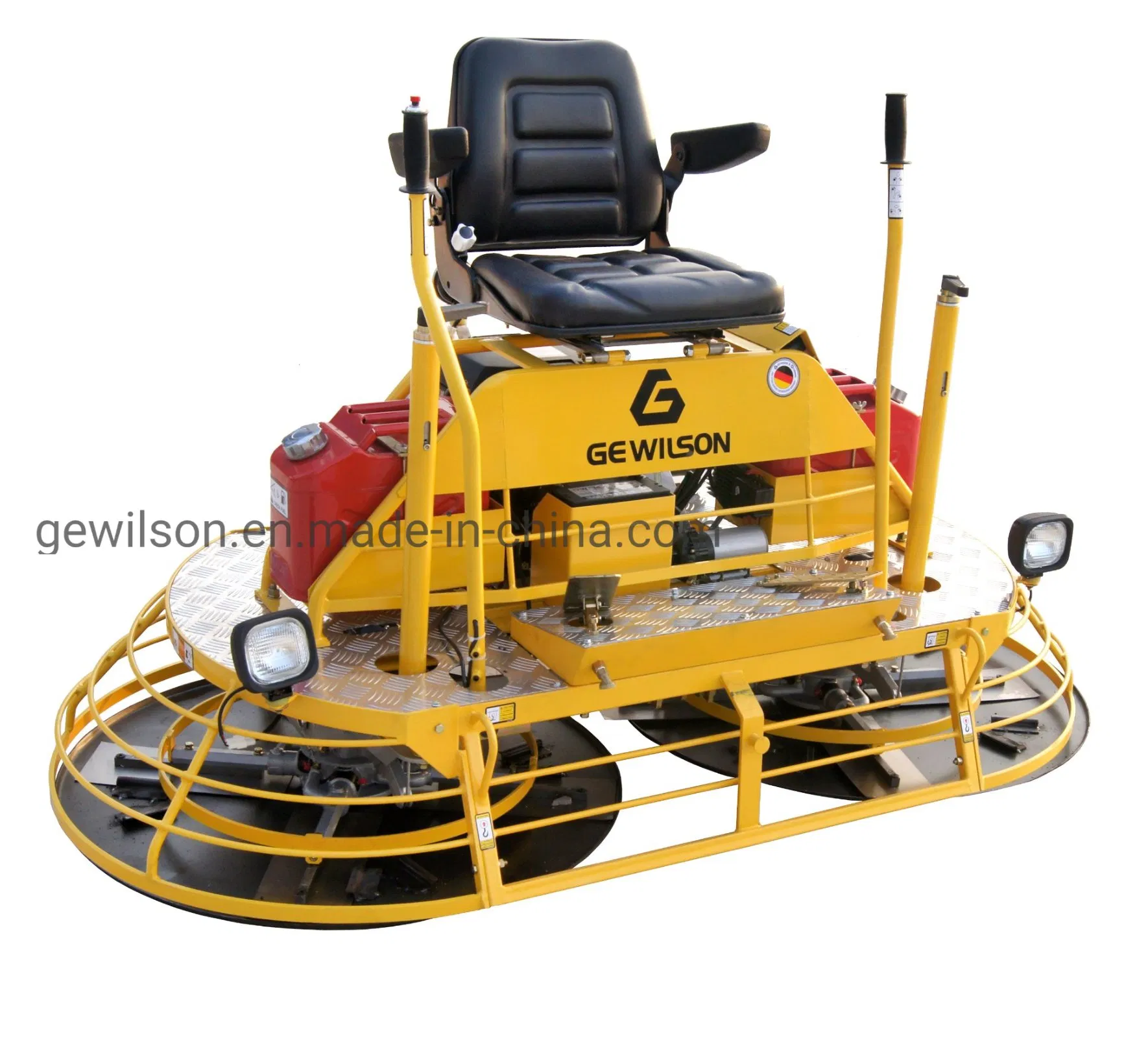

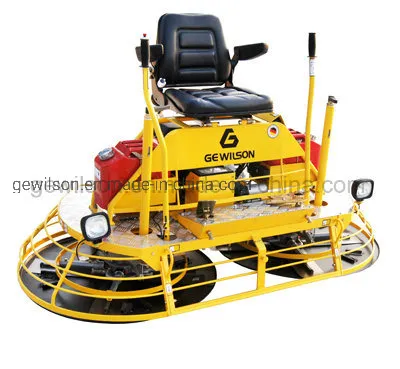

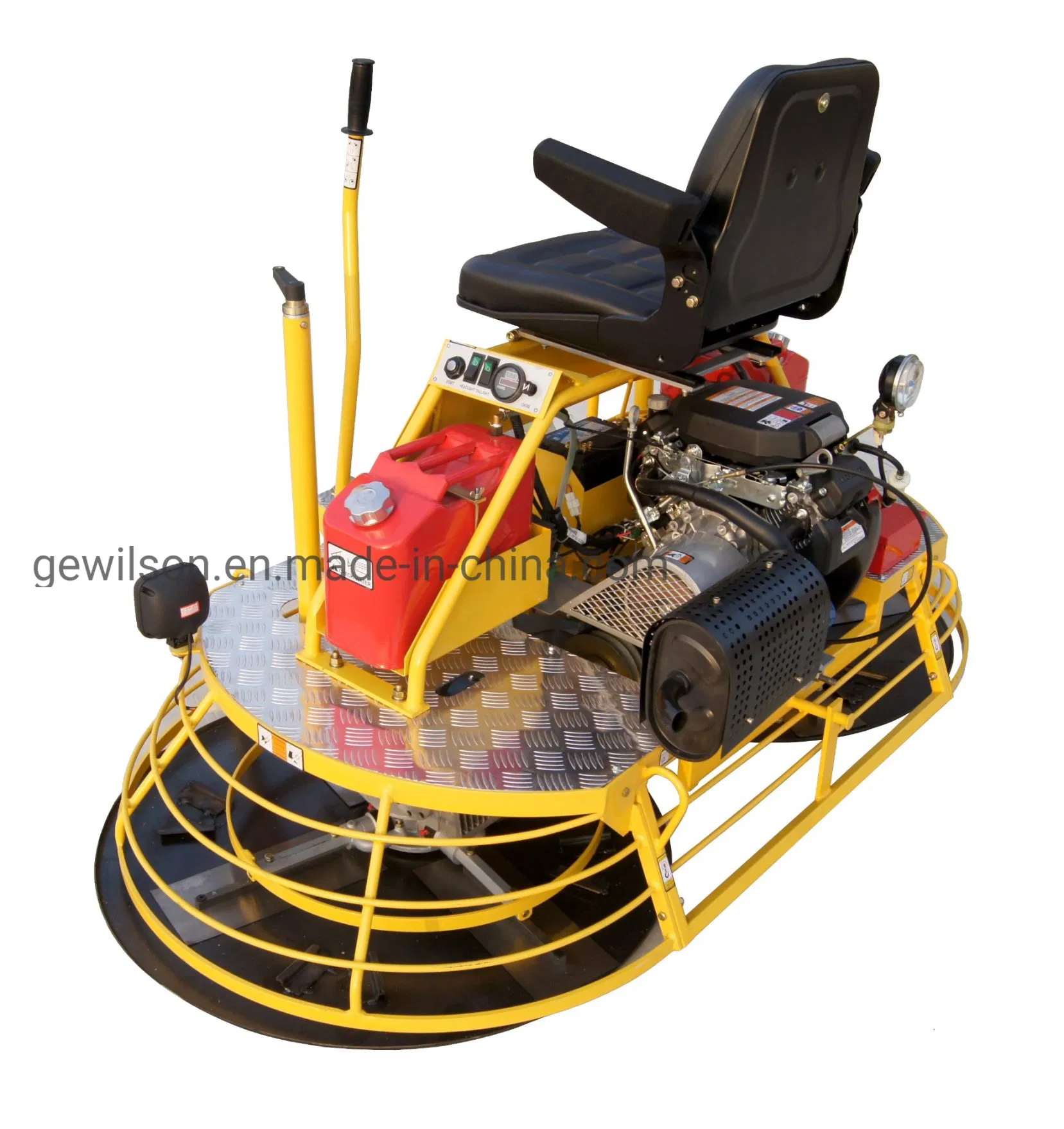

Concrete Ride on Power Trowel Leveling Screed Machine Supplier
Concrete Ride on Power Trowel Leveling Screed Machine SupplierRide-on trowel works efficiently and cost-effective for accurate and highly productive finishing or large concrete surface and super FF falt floor tolerance.Features:1. Heavy duty gearbox provides longer life and low maintenance.2. Steeri......
Send Inquiry
Product Description
Concrete Ride on Power Trowel Leveling Screed Machine Supplier
Ride-on trowel works efficiently and cost-effective for accurate and highly productive finishing or large concrete surface and super FF falt floor tolerance.
Features:
1. Heavy duty gearbox provides longer life and low maintenance.
2. Steering system features a twin stick multi-directional steering system, providing immediate machinecontrol and precise maneuverability
3. Fine hand control for able pitch ensure precise blade adjustment.
4. Tilt forward seat reveals a bulit in hoist hook for transport on or off the work site and allow easy engine access.
5. Adjustable sliding seat for Front-To-Back.
6. Low machine profiles provide a low center of gravity and check the working area easily.
7. Rugged frame is made of harden steel for severest site conditions.
8. Super heavy-duty gearbox and spider assemblystands up for the most grueling job.
9. Side mounted fuel tank and water tank with big wolume for long working time
10. Trowel arm alignment: Adjustment screws allow easy job site blade alignment.
11. Light is adjustment for different direction.
12. Tool kit convenient location easy for operator.
Specifications
Control Panel
The control panel of ride-on power trowel show you the start button,head/tail light ,display and choke and you can handle the power trowel machine easily
75inch low noise Power trowel powered by GX690 Honda engine
Blades
1.We offer a complete line of finishing blade, combination blade, super-blue blade, plastic blade and float pan for edge, walk-behind or ride-on power trowel.
2.All blades can fit most other brands of power trowels.
Product Show

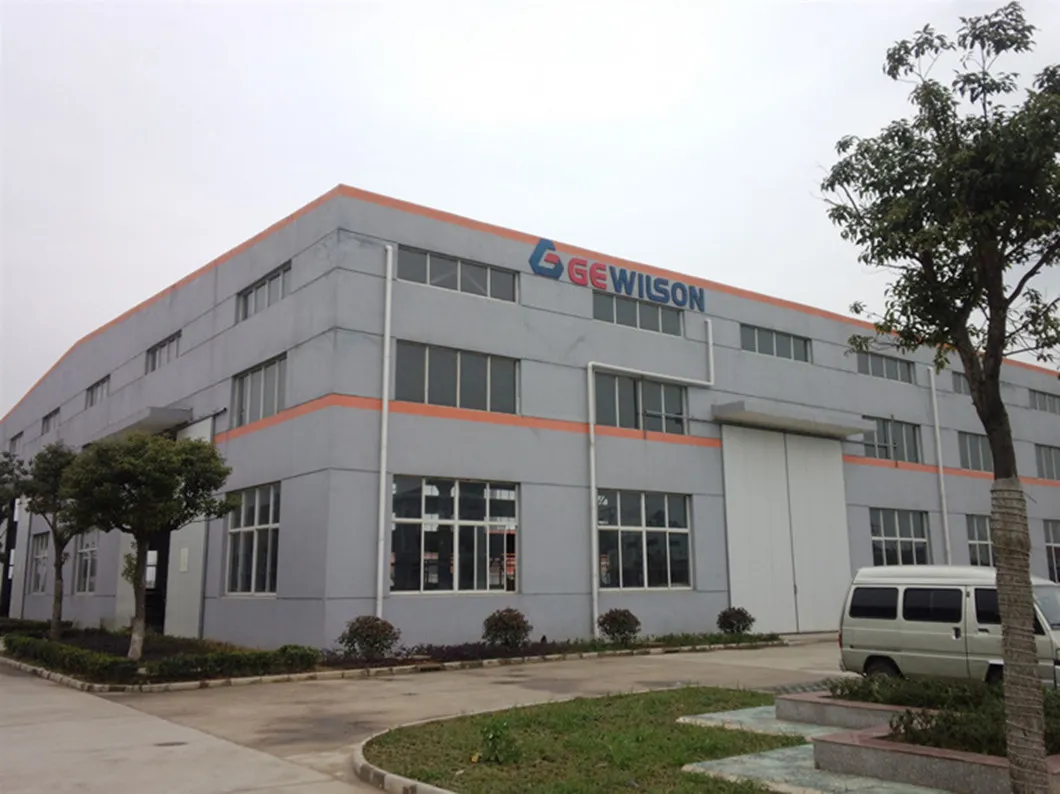

Factory Show
Canton Fair and Cooperation
Certificate&Authorization
Company Introduction
Gewilson is one the national leading manufactures and exporters of powered equipment in China ,It is specialized in generator ,gasoline and diesel generator sets.
gasoline and diesel engine ,water pump,garden machinery,small construction equipment and so on. The company has approved ISO9001 quality system certificate, the products have approved the certificate of CE, EPA, etc.80% of our products are exported abroad, mainly to USA, Europe,Australia, South Asia and Africa.
If you are interested in our products, please feel free to contact us , we will give a detailed introduction to your questions.
Ride-on trowel works efficiently and cost-effective for accurate and highly productive finishing or large concrete surface and super FF falt floor tolerance.
Features:
1. Heavy duty gearbox provides longer life and low maintenance.
2. Steering system features a twin stick multi-directional steering system, providing immediate machinecontrol and precise maneuverability
3. Fine hand control for able pitch ensure precise blade adjustment.
4. Tilt forward seat reveals a bulit in hoist hook for transport on or off the work site and allow easy engine access.
5. Adjustable sliding seat for Front-To-Back.
6. Low machine profiles provide a low center of gravity and check the working area easily.
7. Rugged frame is made of harden steel for severest site conditions.
8. Super heavy-duty gearbox and spider assemblystands up for the most grueling job.
9. Side mounted fuel tank and water tank with big wolume for long working time
10. Trowel arm alignment: Adjustment screws allow easy job site blade alignment.
11. Light is adjustment for different direction.
12. Tool kit convenient location easy for operator.
Specifications
| Model | GPT836 |
| Engine type | HONDA GX690 |
| Power kw(hp) | 16.5(22.1) |
| Weight kg(Ibs) | 340(748) |
| Blade speed rpm | 75-150 RPM |
| Working Dia. mm | 1910 |
| OVERLAPPING | NO |
Control Panel
The control panel of ride-on power trowel show you the start button,head/tail light ,display and choke and you can handle the power trowel machine easily
75inch low noise Power trowel powered by GX690 Honda engine
Blades
1.We offer a complete line of finishing blade, combination blade, super-blue blade, plastic blade and float pan for edge, walk-behind or ride-on power trowel.
2.All blades can fit most other brands of power trowels.
Product Show
Factory Show
Canton Fair and Cooperation
Certificate&Authorization
Company Introduction
Gewilson is one the national leading manufactures and exporters of powered equipment in China ,It is specialized in generator ,gasoline and diesel generator sets.
gasoline and diesel engine ,water pump,garden machinery,small construction equipment and so on. The company has approved ISO9001 quality system certificate, the products have approved the certificate of CE, EPA, etc.80% of our products are exported abroad, mainly to USA, Europe,Australia, South Asia and Africa.
If you are interested in our products, please feel free to contact us , we will give a detailed introduction to your questions.
